Predictive Analytics Homework 7: Forecasting

Goal

We’ll return to the task of predicting bike sharing rides. Recall that we noticed that our models performed poorly because they did not account for distribution shift: the bike-share system got more popular overall in 2012, but our models from 2011 couldn’t handle that.

In this assignment, we’ll address the problem in two ways:

  1. We’ll start halfway into 2012 when making our forecasts. That way we’ll have some evidence about what’s happening in 2012.
  2. We’ll apply some modeling approaches that are designed to work with time series.

Recall that none of the models achieved an MAE under 300 for 2012 in the previous assignment. By using these approaches, we’ll be able to cut our error by at least a third.

Getting Started

I used the following setup chunk when producing this assignment:

knitr::opts_chunk$set(echo = TRUE)
library(tidyverse)
library(rsample)
library(fpp3)
theme_set(theme_bw())

Include the following code to load the data file.

daily_rides <- readRDS(url("https://cs.calvin.edu/courses/info/602/14forecast2/hw/bikeshare-day.rds"))

Quick EDA (No Exercises)

We spent too little time on the EDA in the previous assignment; here’s a few quick additions for this one:

First, skimr is your friend. Check it out:

skimr::skim(daily_rides)
Data summary
Name daily_rides
Number of rows 731
Number of columns 15
_______________________
Column type frequency:
Date 1
factor 7
numeric 7
________________________
Group variables None

Variable type: Date

skim_variable n_missing complete_rate min max median n_unique
date 0 1 2011-01-01 2012-12-31 2012-01-01 731

Variable type: factor

skim_variable n_missing complete_rate ordered n_unique top_counts
season 0 1 FALSE 4 3: 188, 2: 184, 1: 181, 4: 178
year 0 1 FALSE 2 201: 366, 201: 365
holiday 0 1 FALSE 2 0: 710, 1: 21
weekday 0 1 FALSE 7 Sat: 105, Sun: 105, Mon: 105, Tue: 104
workingday 0 1 FALSE 2 wor: 500, wee: 231
weathersit 0 1 FALSE 3 1: 463, 2: 247, 3: 21
month 0 1 FALSE 12 1: 62, 3: 62, 5: 62, 7: 62

Variable type: numeric

skim_variable n_missing complete_rate mean sd p0 p25 p50 p75 p100 hist
temp 0 1 15.28 8.60 -5.22 7.84 15.42 22.80 32.50 ▂▇▇▇▅
atemp 0 1 15.31 10.76 -10.78 6.30 16.12 24.17 39.50 ▂▇▆▇▂
hum 0 1 0.63 0.14 0.00 0.52 0.63 0.73 0.97 ▁▁▆▇▂
windspeed 0 1 0.19 0.08 0.02 0.13 0.18 0.23 0.51 ▃▇▅▁▁
casual 0 1 848.18 686.62 2.00 315.50 713.00 1096.00 3410.00 ▇▆▂▁▁
registered 0 1 3656.17 1560.26 20.00 2497.00 3662.00 4776.50 6946.00 ▂▅▇▅▃
cnt 0 1 4504.35 1937.21 22.00 3152.00 4548.00 5956.00 8714.00 ▂▅▇▅▃

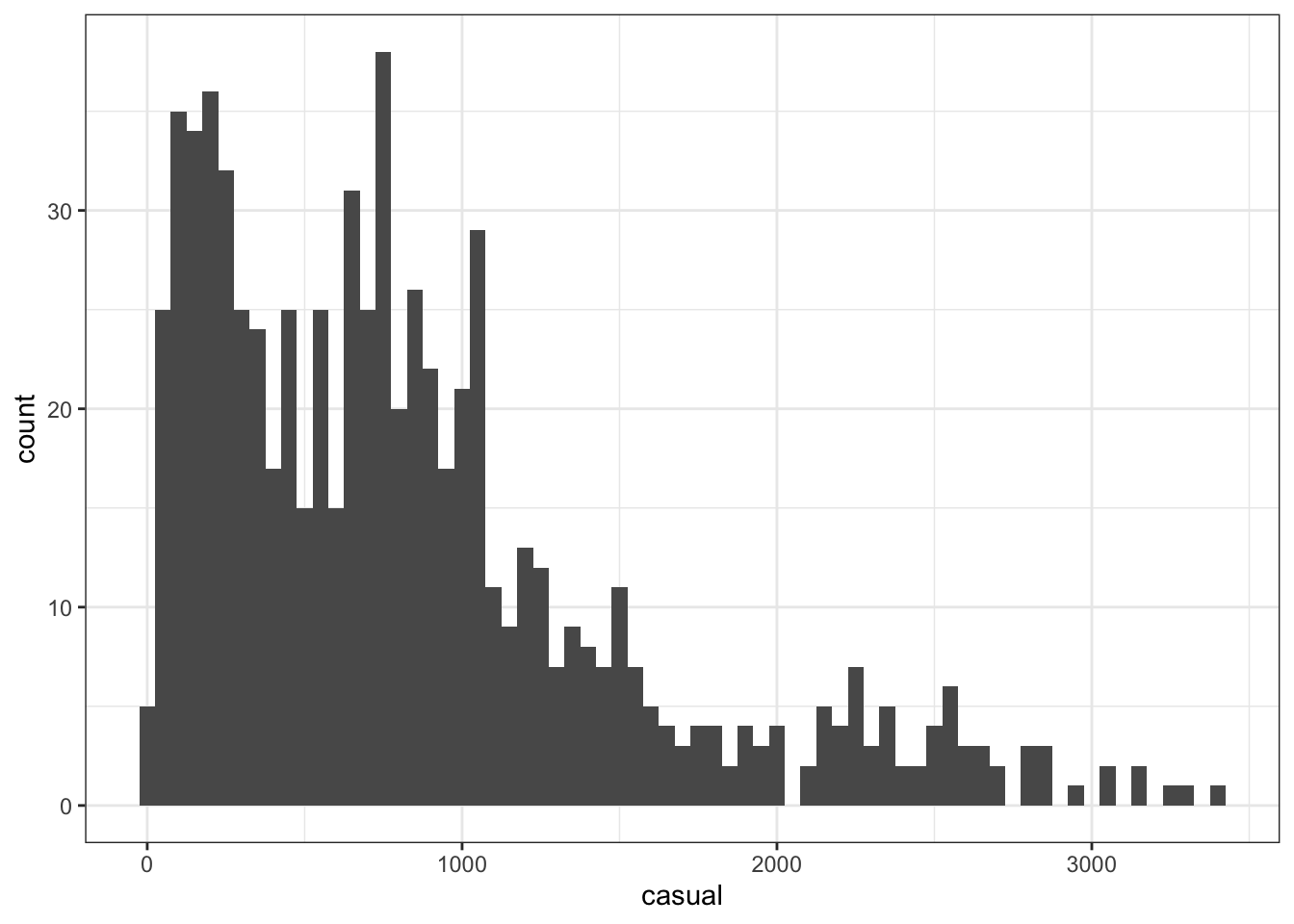

When starting an analysis, it’s really useful to look at the distribution of your response variable. Let’s plot the histogram of casual.

Notice the long tail of high-ridership days. These can often throw off a model. Also notice that there are no ride counts below 0, as should be expected for data of counts. But a linear model might end up predicting a negative value, which wouldn’t make sense.

We can address both of those problems by transforming our response variable. Instead of trying to predict casual, let’s try to predict log(casual). That way we’ll never predict a negative value for casual.

Other transformations may work better, but log-transforming data is simple and common. In a linear model, it means that each term contributes multiplicatively to the prediction: each degree of temperature increase will mulitply the ride count by something (i.e., it goes up by x percent), rather than adding to it.

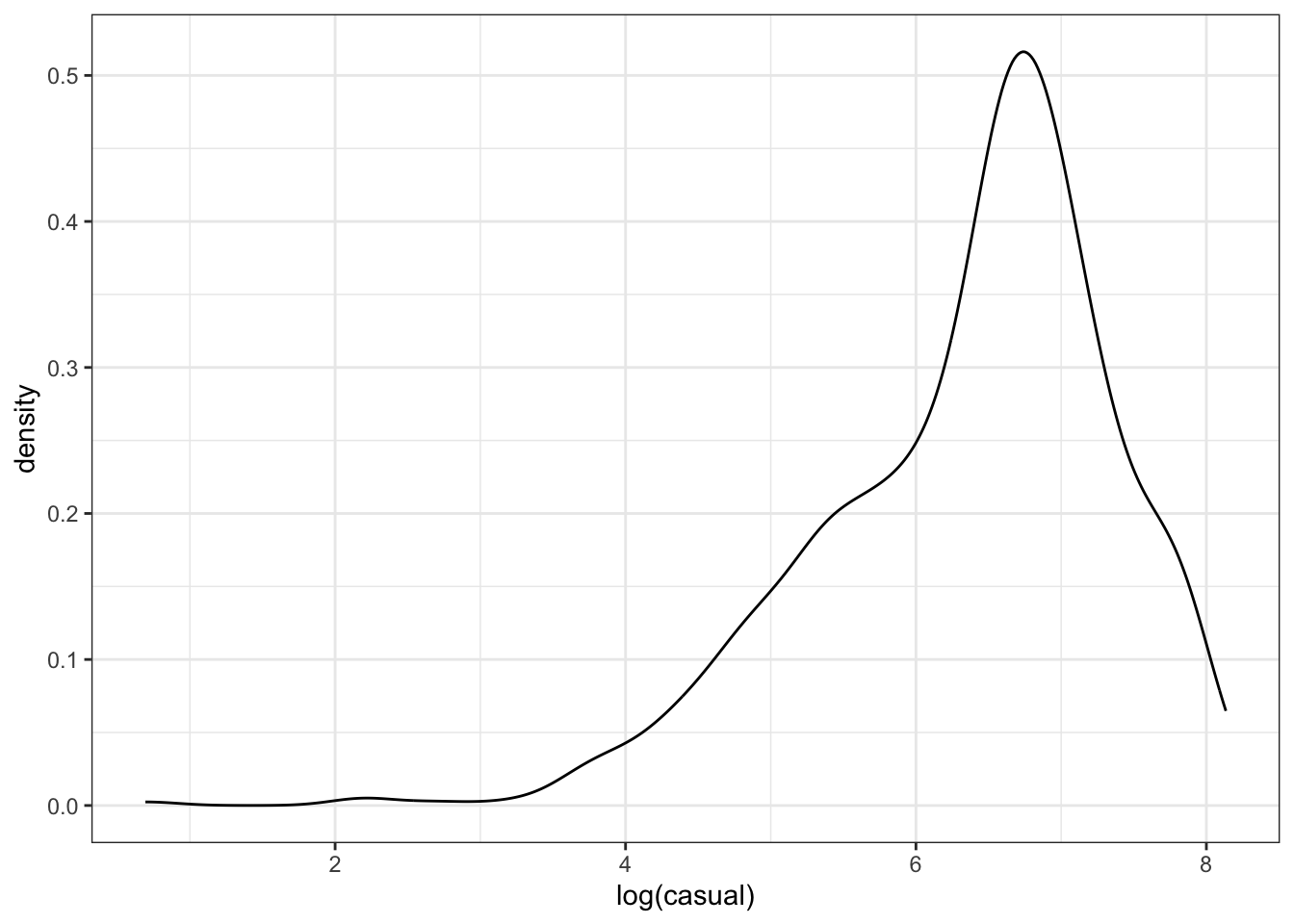

Now, we’ll plot the distribution of log(casual). Use a histogram or density plot.

Notice that the data distribution is less skewed, and the clear outliers are now actually the low-ridership days, which may not matter as much anyway. Going forward, let’s use this transformed result. (Note that we won’t need to explicitly make a new column; the modeling functions will handle the transformation and inverse transformation for us.)

Time Series EDA

We’ll first make our data into a time series:

rides_ts <- daily_rides %>%
  as_tsibble(index = date)

Autocorrelation

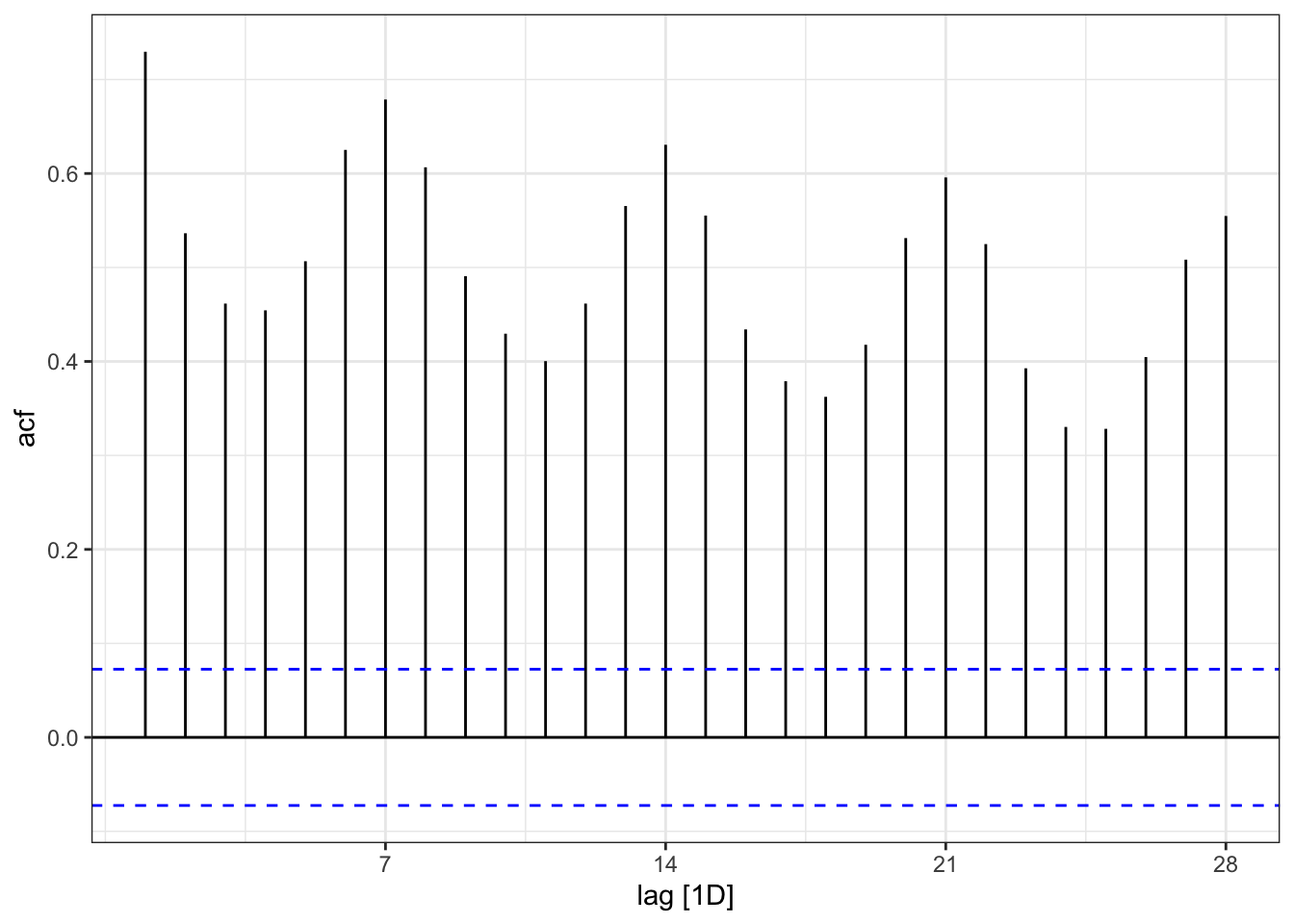

Exercise 1 (5pt) Here’s a plot of the autocorrelation function (ACF) of log(casual).

  1. What peaks do you observe in the ACF?
  2. What do those peaks tell us about the data?
rides_ts %>%
  ACF(log(casual)) %>%
  autoplot()

Decomposition

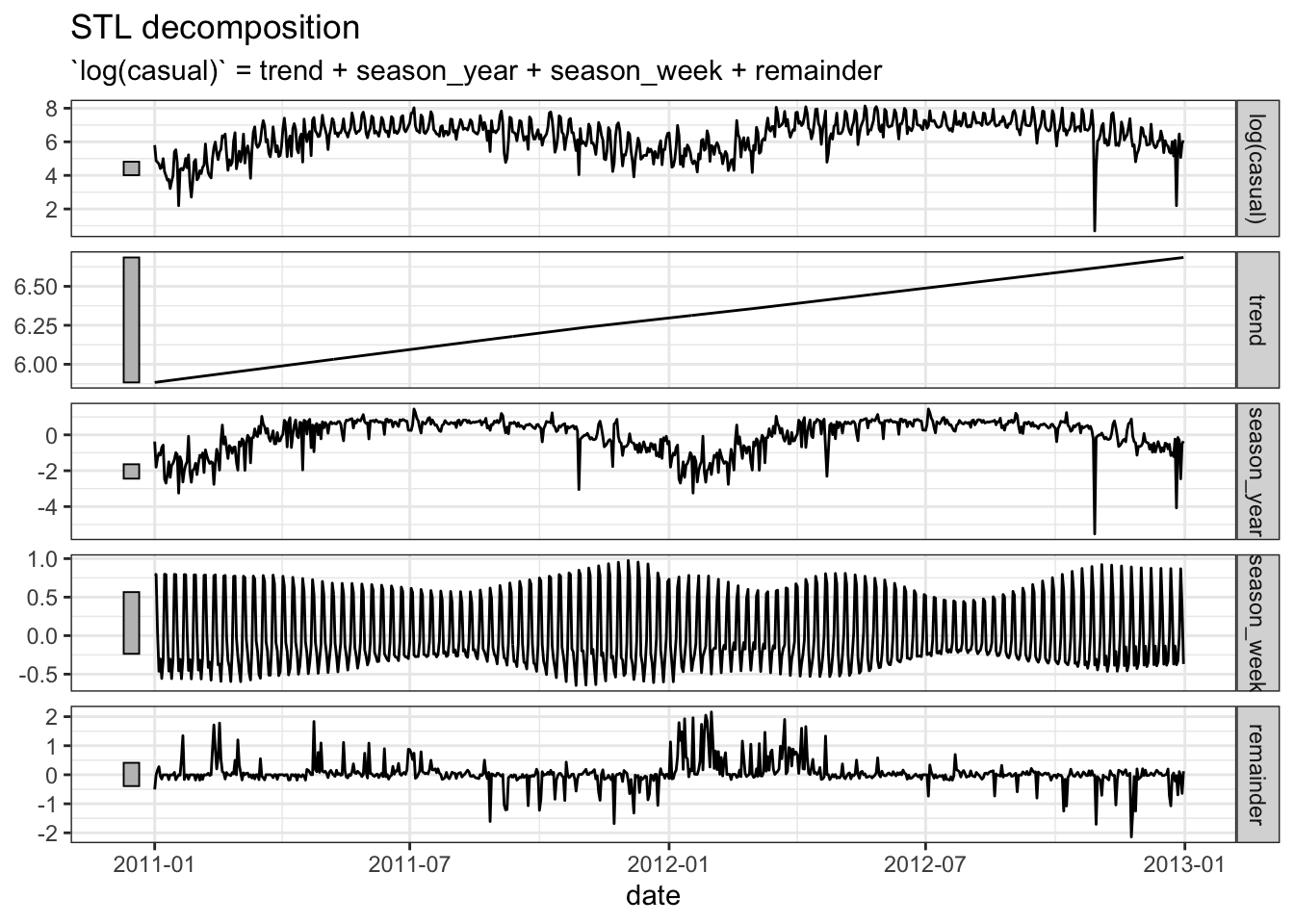

Let’s decompose the time series into trend, seasonal, and remainder.

rides_ts %>%
  model(
    STL(log(casual) ~ trend() + season(), robust = TRUE)
  ) %>%
  components() %>%
  autoplot()

Exercise 2 (2pt) Based on what you know or can look up about bike riding, explain why this time series has both yearly and weekly seasonal components.

Train-test Split

We’ll take the first 3/4 of the data as training set, and last 1/4 as test. We’re not shuffling the data first; we want to make sure that the test set is actually the future.

splits <- rides_ts %>% initial_time_split(prep = 3/4)
rides_train <- training(splits)
rides_test <- testing(splits)

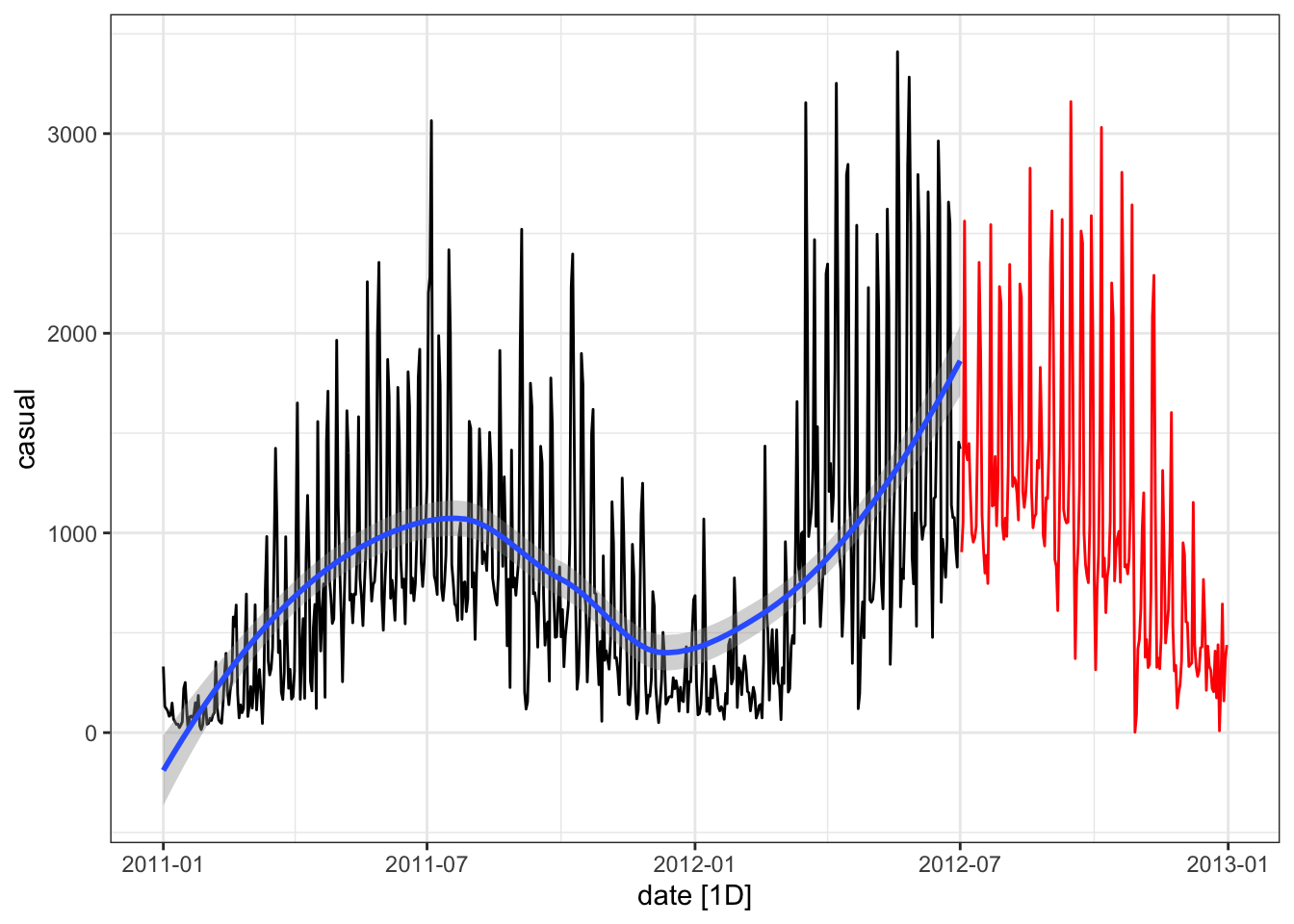

Let’s plot the data, marking the test set separately. I’ll give you the code here since it’s slightly non-obvious.

rides_train %>%
  autoplot(casual) +
    geom_smooth() +
    autolayer(rides_test, casual, color = 'red')

Exercise 3 (4pt) Based on what we’ve seen about the data so far, plus what you might know about bike riding:

  1. What factors work in favor of making good predictions for the future data?
  2. What factors work against making good predictions?

Simplistic Models

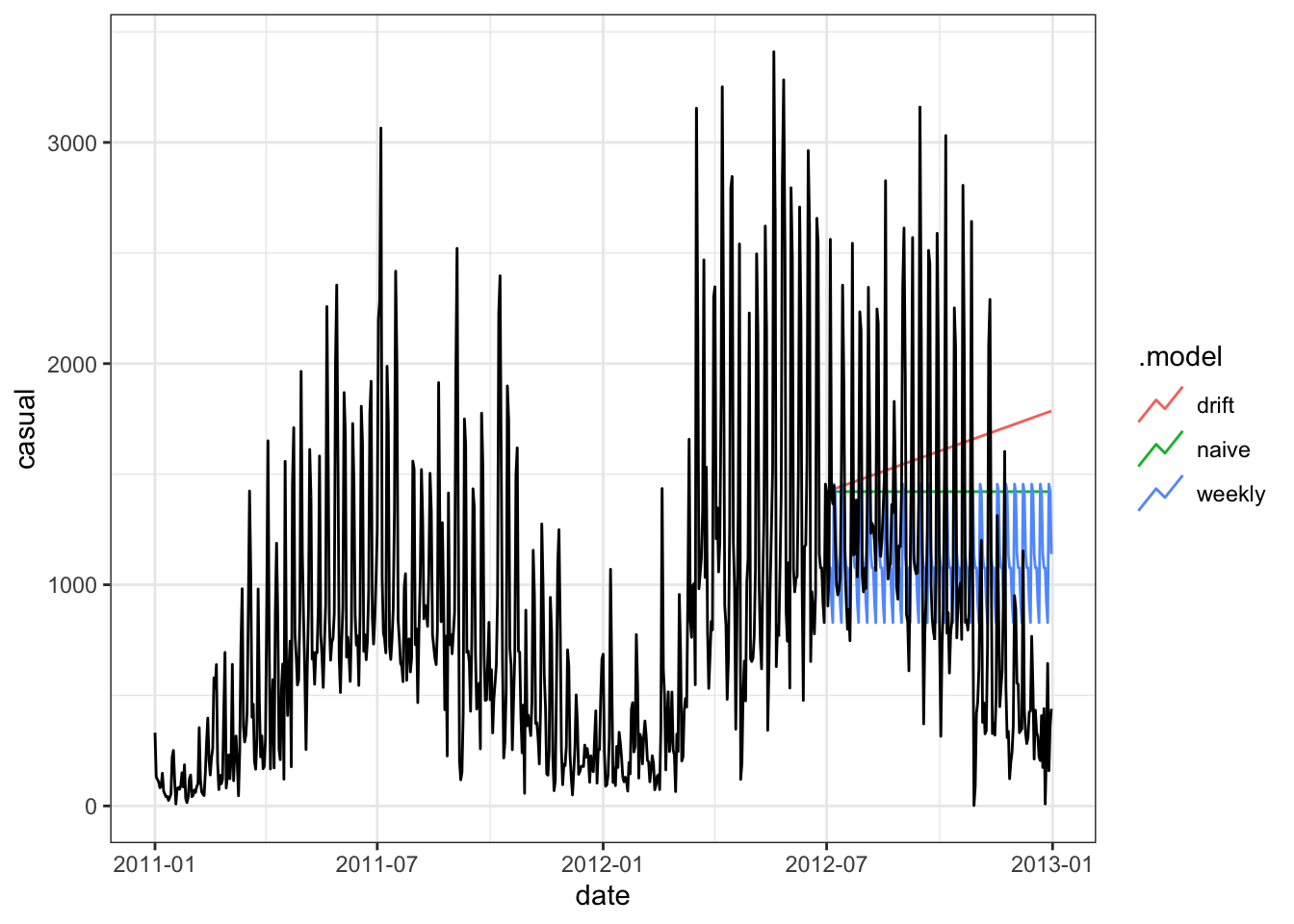

Use the following code to predict the ridership on the test set using naive (“random walk”), drift, and weekly seasonal models.

# Fit the models.
models <- rides_train %>% model(
  naive = NAIVE(casual),
  drift = NAIVE(casual ~ drift()),
  weekly = SNAIVE(casual ~ lag(7))
)

# Get forecasts on the test set.
forecasts <- models %>%
  forecast(rides_test)

# Plot forecasts against the actual data.
# Change `rides_ts` to `rides_test` if you want to zoom in.
# We use `level = NULL` to hide prediction intervals.
forecasts %>%
  autoplot(rides_ts, level = NULL)

Exercise 4 (4pt) Describe the difference between the forecasts made by the three models. Also, identify which one seems to fit the data best; explain why it does so.

Exercise 5 (2pt) The following code is used to quantify the accuracy of the models. Compare the accuracy numbers you get here with what seemed to fit the data best in the previous exercise.

forecasts %>%
  accuracy(rides_test) %>%
  select(.model, MAE, MAPE, RMSE)
# A tibble: 3 × 4
  .model   MAE  MAPE  RMSE
  <chr>  <dbl> <dbl> <dbl>
1 drift   796.  719.  915.
2 naive   663.  600.  768.
3 weekly  492.  463.  617.

Regression Models

Exercise 6 (1pt): Copy the code from above but change the models as follows. First, keep only the best-performing of the simplistic models. Then, add the following two models:

  • lm = TSLM(casual ~ temp + workingday + month) and (don’t forget the commas between models)
  • lm_trend = TSLM(casual ~ temp + workingday + month + trend())

Compare the performance of these models with the previous models based on both the prediction plots and the quantitative error metrics.

Note 1: These declare simple linear models with identical structure to what we fit in the previous homework. There’s nothing “time series” about them, except that they do distinguish weekends from weekdays and let the prediction change between months.

Note 2: Try to keep the code clean and simple; remove extraneous comments. I used the same variable names so I wouldn’t mistakenly forget to, say, change models to models2 when making forecasts, but you may do whatever you prefer as long as it gets the correct results.

Transformed Targets

Exercise 7 (1pt) Again, copy the above, keeping only the best-performing model (according to MAE). Add a second version of the model, replacing casual ~ with log(casual) ~, so the model works on the log scale.

Exercise 8 (4pt): Looking at the plot, explain why the model with the best MAE is not the same as the model with the best MAPE. Which model would you trust more?

More complex models

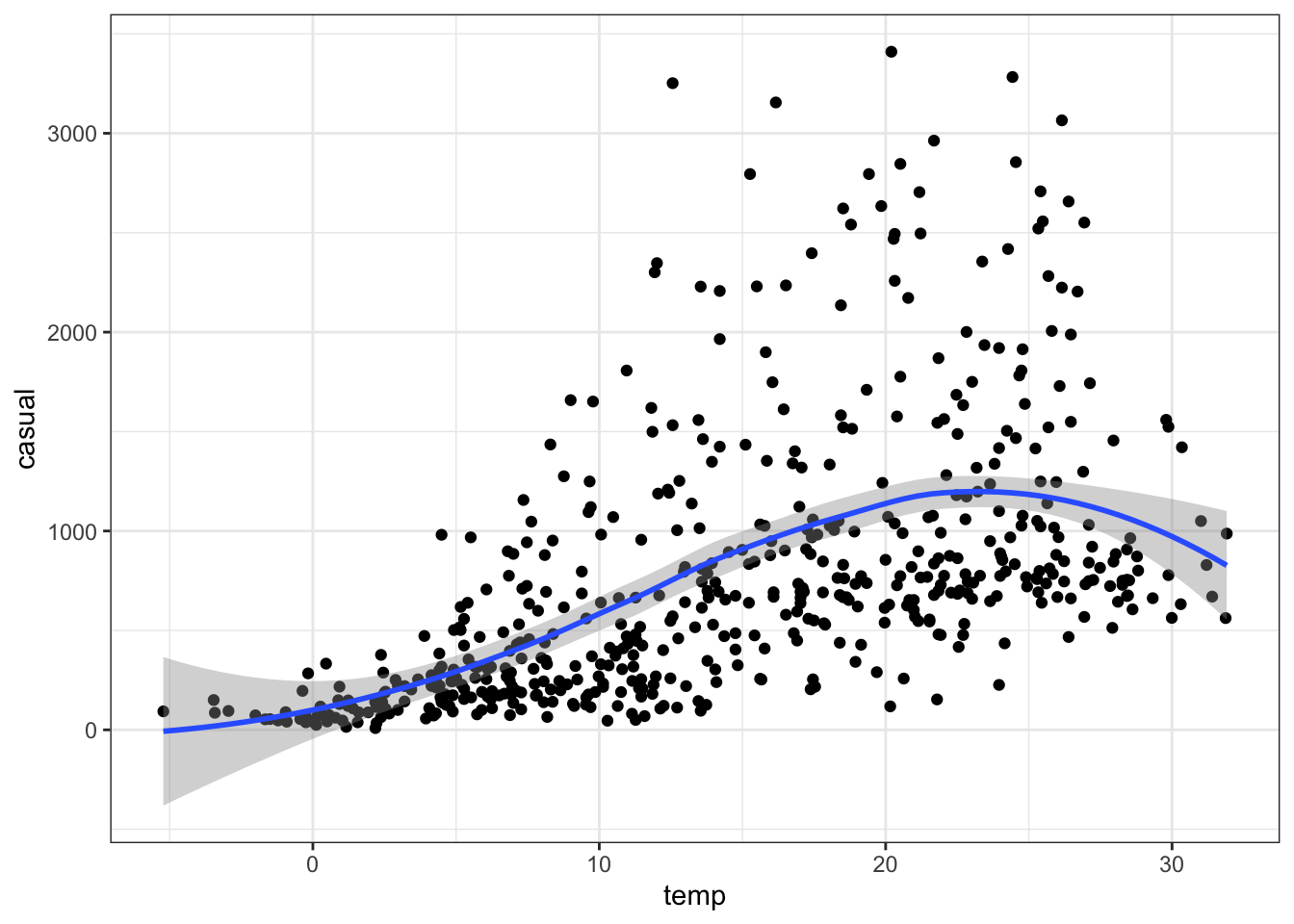

Now, notice that the effect of temperature is not linear.

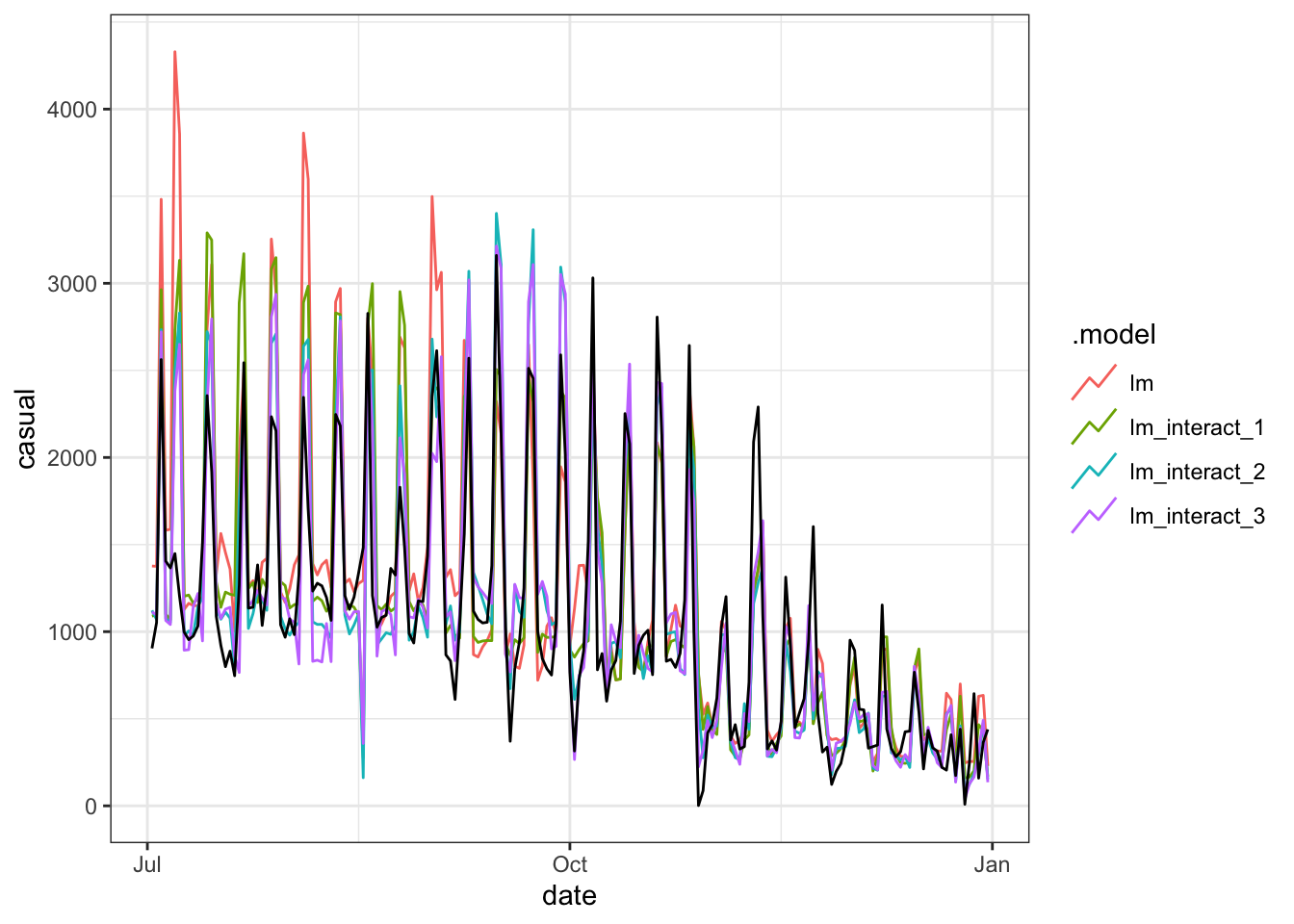

So let’s add some interaction terms. Keep only the log(casual) ~ temp + workingday + month + trend() model from above, and make more models, with the following changes:

  • Model 1: instead of temp, use temp * atemp. This is like adding a temp-squared term, but also allows us to pull in the feels-like data from atemp (apparent temperature).
  • Model 2: same, but temp * atemp * hum instead.
  • Model 3, same, but also add weathersit (the type of weather, e.g., sunny or stormy)
# A tibble: 4 × 4
  .model          MAE  MAPE  RMSE
  <chr>         <dbl> <dbl> <dbl>
1 lm             343. 258.   537.
2 lm_interact_1  296. 250.   459.
3 lm_interact_2  263. 184.   380.
4 lm_interact_3  261.  90.5  363.

Exercise 9 (2pt): Describe how the accuracy has changed.

Dynamic Regression Models

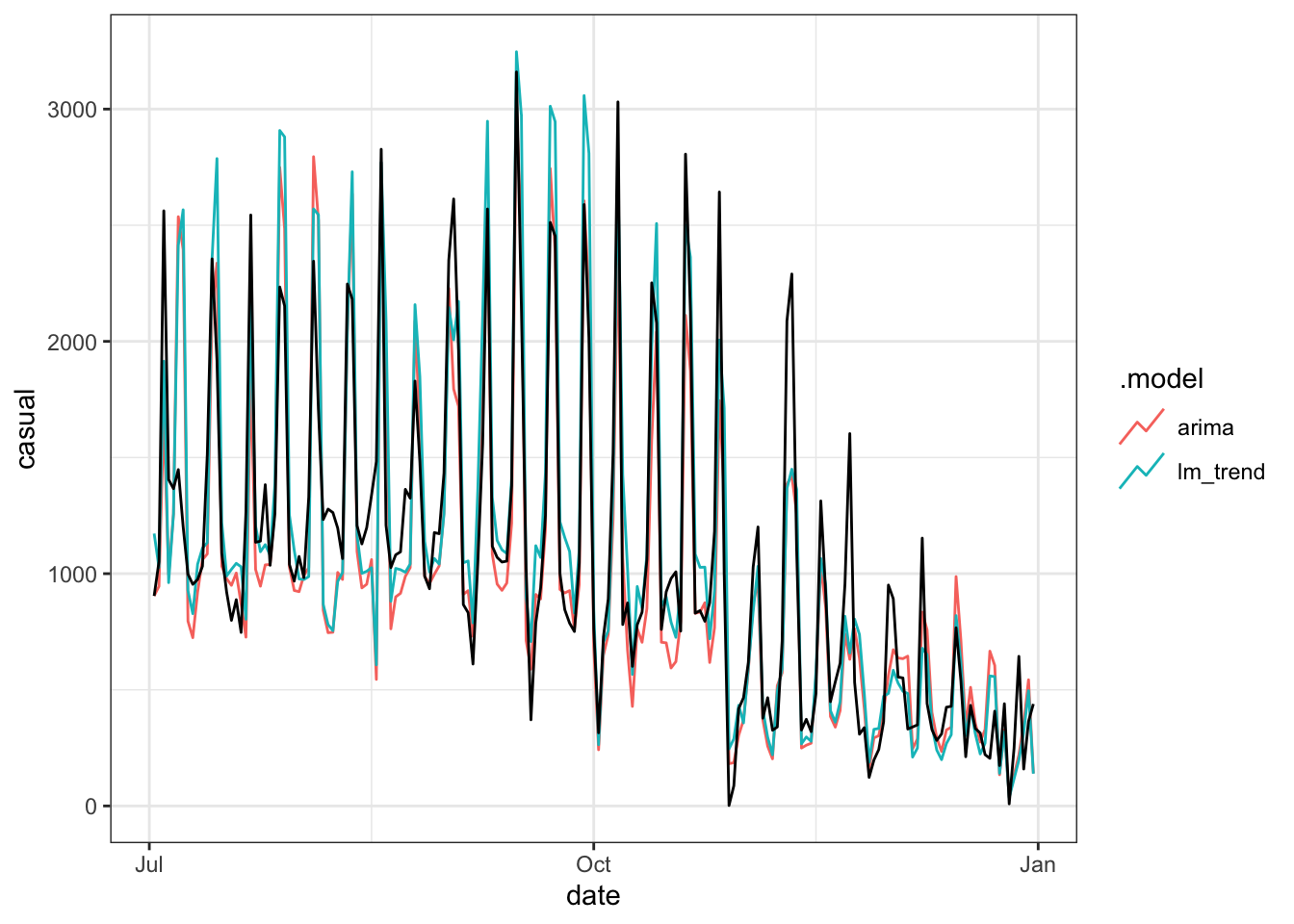

As a preview of what you’d study if you got further into time series analysis than we’ll get here, try adding the following model:

arima = ARIMA(log(casual) ~ temp * hum * atemp + weathersit + holiday + PDQ(period = "1 week"))

# A tibble: 2 × 4
  .model     MAE  MAPE  RMSE
  <chr>    <dbl> <dbl> <dbl>
1 arima     223.  75.5  317.
2 lm_trend  240.  94.6  334.

Exercise 10 (5pt): Reflect on the accuracy results you’ve seen in this exercise. Do you think we can make good forecasts? Our latest models look good, but: do you have any reason not to be confident in them? Think about what the habits of validation we learned in previous units.
